Utility-Scale Energy Storage

Containerized BESS, integrated PCS skids, and microgrid systems engineered for grid stability, renewable integration, and large-scale energy management.

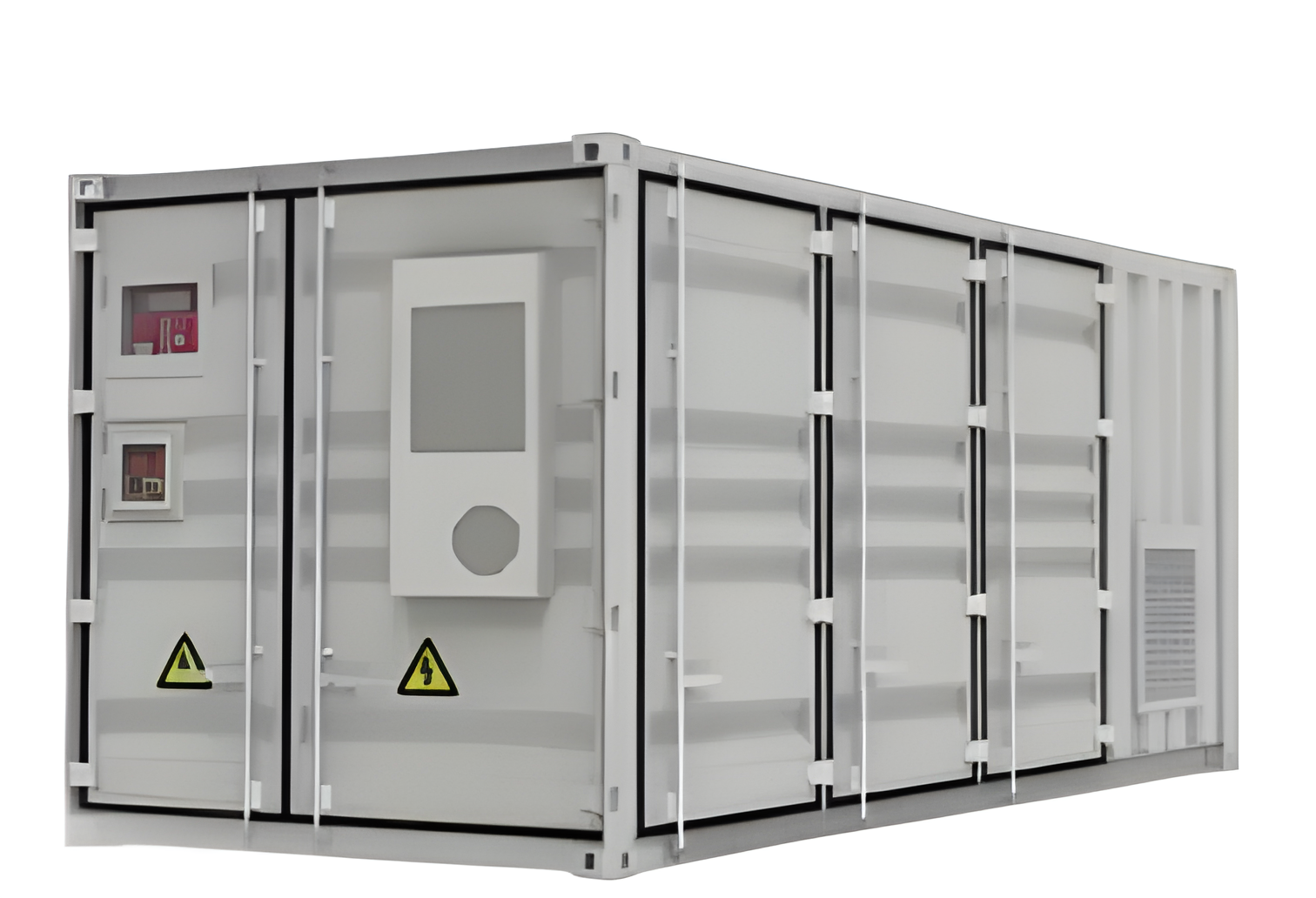

Henja Grid Container 3.354MWh

Henja Grid Container 3.354MWh

Utility-grade storage for large-scale energy management

Containerized energy storage units engineered for renewable integration, grid balancing, and microgrid stabilization. High-capacity throughput, liquid-cooled thermal management, and flexible deployment in a 20-ft footprint.

Energy Capacity
3.354 MWh
Power Rating
1.67 MW
DC Voltage
1164.8~1497.6 V
Temperature
-20~50°C
  • 3.354 MWh capacity with 1.67 MW power rating
  • 1164.8~1497.6 V DC operating range
  • RS485 / CAN / Ethernet communication
  • 35 t system weight with 6058×2438×2896 mm size
Request Pricing Compare

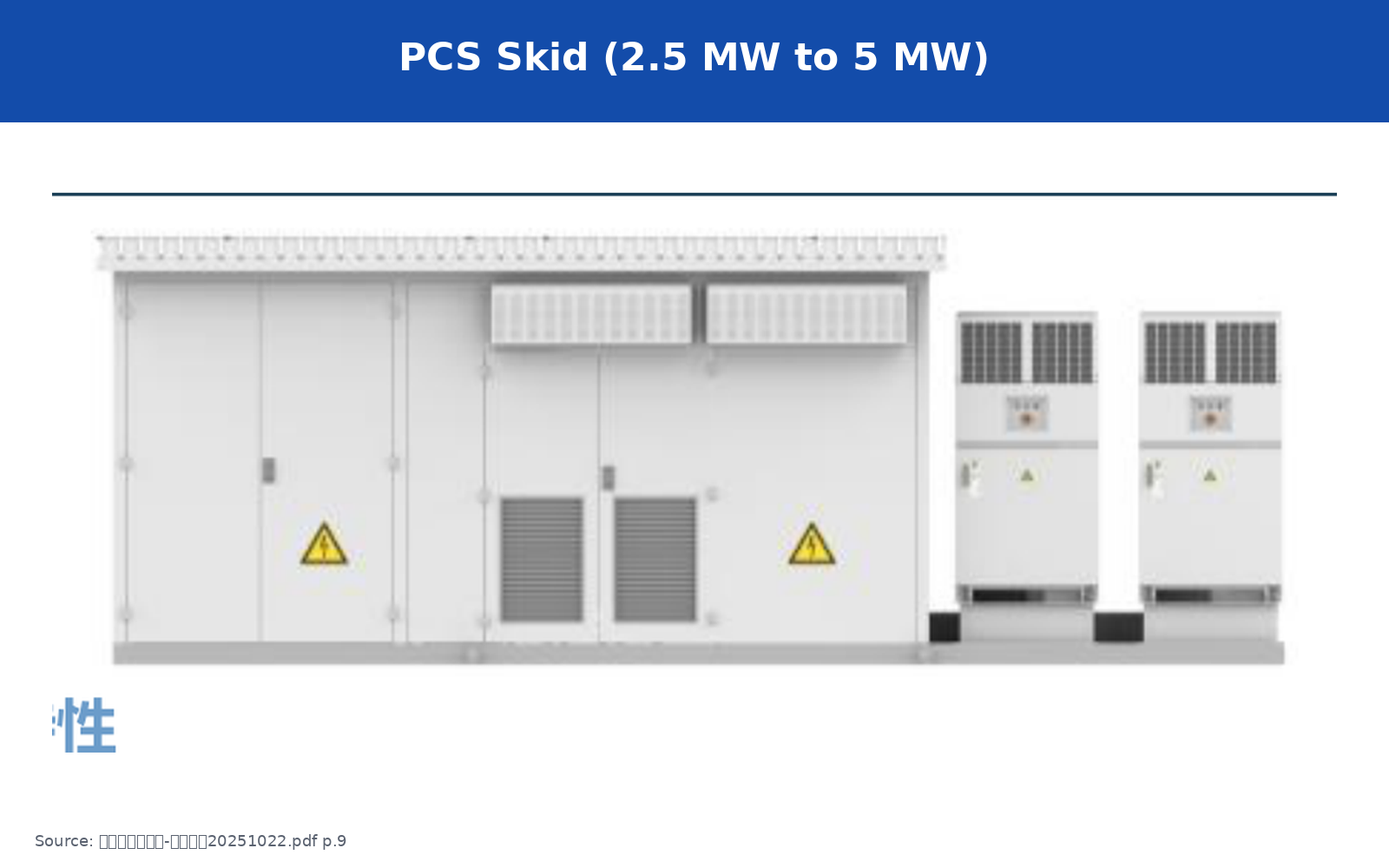

Henja Grid PCS 2500

Henja Grid PCS 2500

Integrated converter and step-up transformer in one footprint

A three-level topology PCS with dry-type transformer, full grid-support functionality, and dual battery inputs. Ships pre-integrated to cut field installation time and on-site footprint.

Rated Power
2500 kW
Max Power
2761 kW
DC Voltage Max
1500 V
Grid Voltage
690 V
  • 2500 kW rated power and 2761 kW max power
  • 1500 V DC max and 690 V grid voltage
  • 99% efficiency with air and water cooling
  • CAN / RS485 / Ethernet communication
Request Pricing Compare

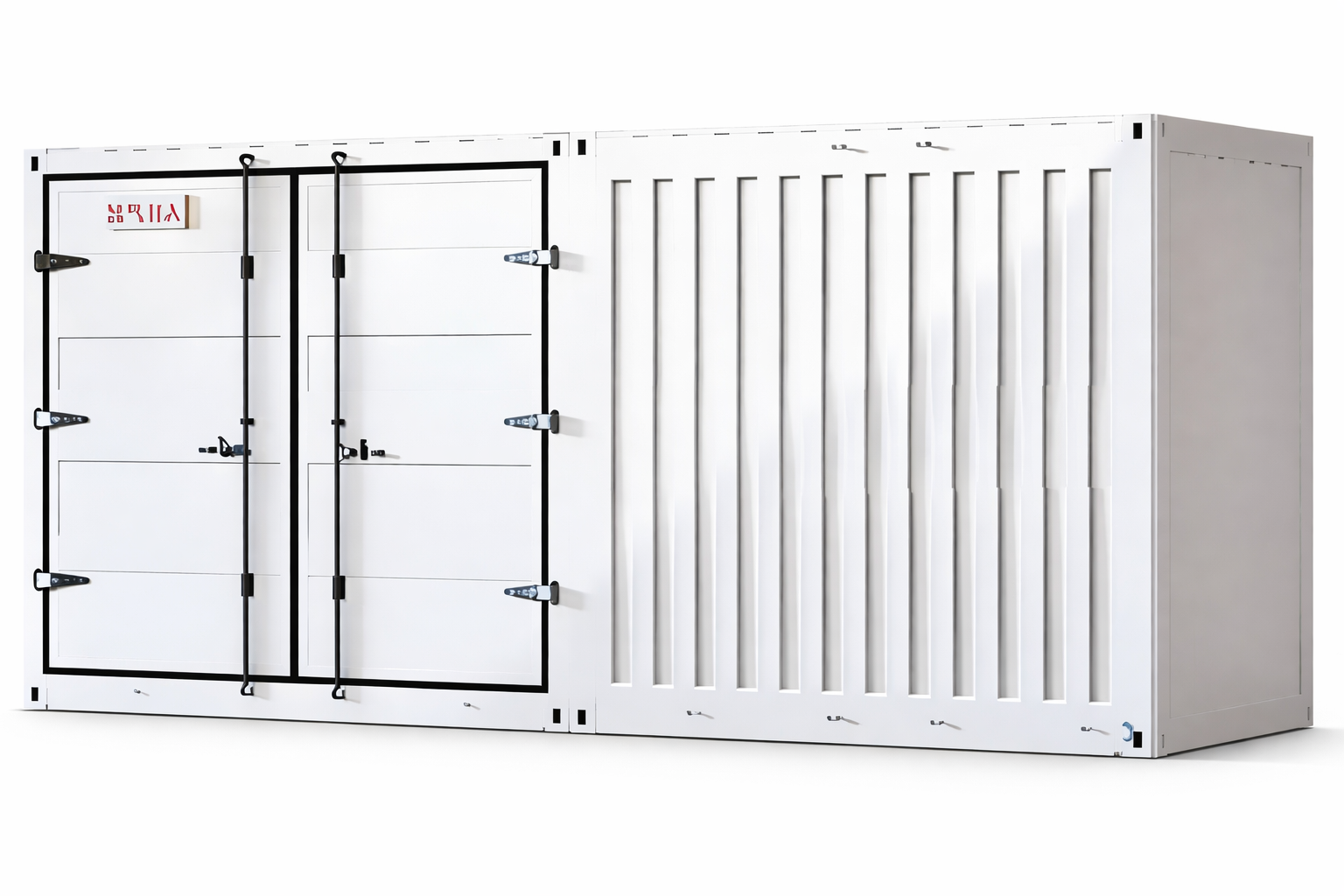

Henja Microgrid 1.6

Henja Microgrid 1.6

Integrated PV-storage solution for off-grid and edge sites

A containerized microgrid that combines PV inverter, lithium battery, BMS, central control, and EMS in one fast-deploy unit. Built for islands, border outposts, charging stations, and remote villages where the grid doesn't reach.

PV Power
60~300 kWp
Battery Capacity
600~1200 kWh
AC Power
60~300 kW
Switch Time
≤10 ms
  • 60~300 kWp PV power
  • 600~1200 kWh battery capacity
  • 60~300 kW AC power
  • ≤10 ms switch time
Request Pricing Compare

Where Utility Storage Creates Value

Stabilize renewable generation, support weak grids, and store, dispatch energy on demand.

Grid-Side Storage Stations

Frequency regulation, peak shaving, and ancillary service revenue for grid operators.

Solar & Wind Pairing

Mitigate curtailment and shift renewable generation to evening peak demand.

Independent & Shared Storage

Stand-alone power assets and shared-storage business models for IPPs.

Compare All Systems

Quick spec comparison across the utility-scale lineup.

Specification Henja Grid Container 3.354MWh Henja Grid PCS 2500 Henja Microgrid 1.6
Capacity / PV Power3.354 MWh--60~300 kWp
Power1.67 MW2500 kW rated / 2761 kW max60~300 kW AC
DC / Grid Voltage1164.8~1497.6 V DC1500 V DC max / 690 V gridAC400 V grid
CoolingLiquid coolingAir & Water coolingForced air cooling
ProtectionIP54IP54IP54
Temperature-20~50°C-35~60°C-20~45°C
Communication / SizeRS485 / CAN / Ethernet; 6058×2438×2896 mmCAN / RS485 / Ethernet6058×2896×2438 mm

Ready to spec your project?

Our utility engineering team responds to RFPs and sizing requests within one business day.

Contact Sales
